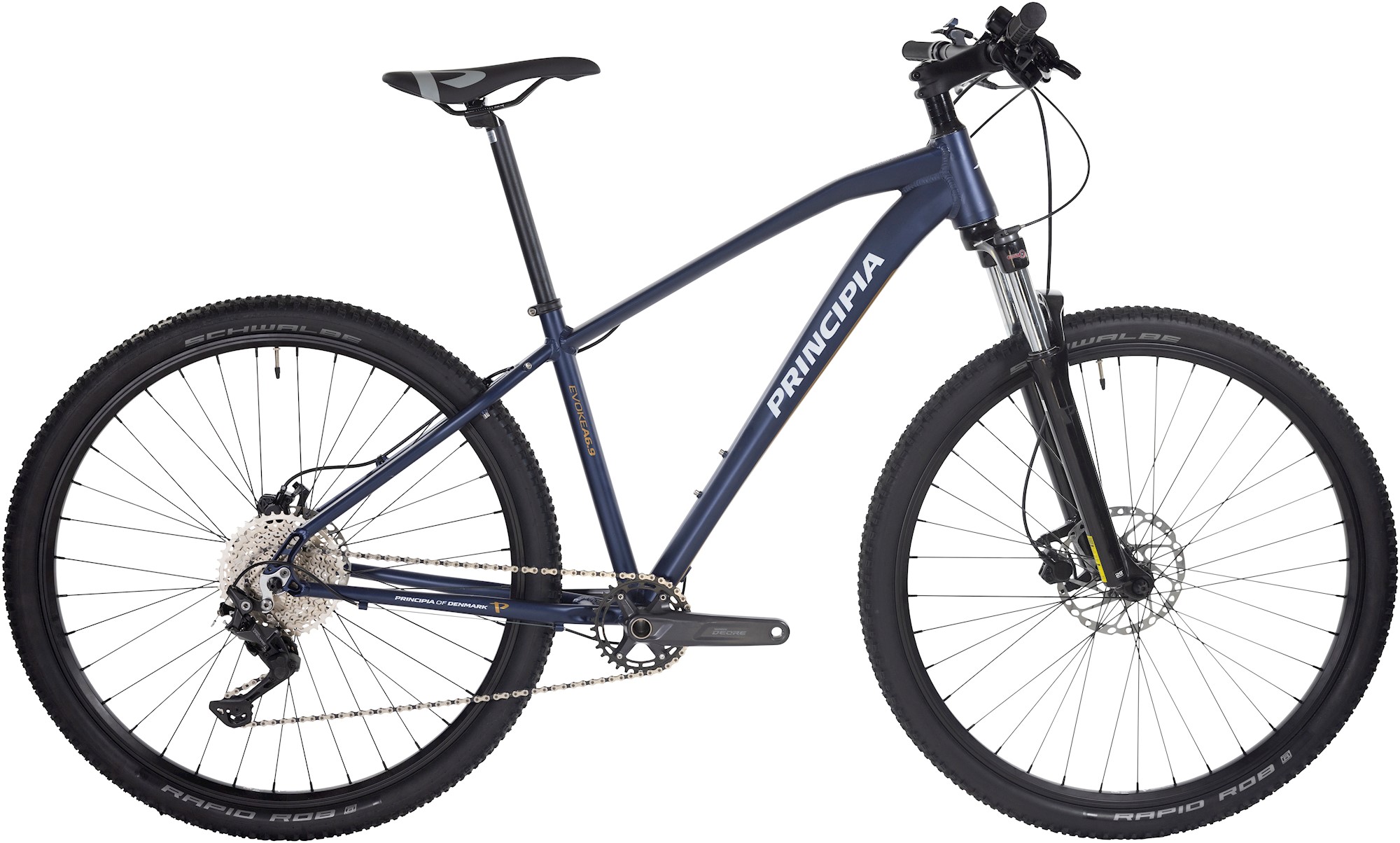

Name: Evoke A6.9 - blue
Brand: Principia
SKU: 907233217

Specifications

Frame	Principia PC-20 29" MTB
Material	Aluminium
Fork	SR Suntour SF14-XCR32-Air RLR DS, remote lock out
Frame colour	Matt blue
Decal	White/gold
Speed (no. of gears)	11
Rear derailleur	Shimano Deore M6000
Cassette	Shimano CS-M5100 11sp 11-42T
Crankset	Samox AF26 32T 175mm
Front brake	Tektro HD-M285 hydraulic disc brake, 180 mm. rotor
Rear brake	Tektro HD-M285 hydraulic disc brake, 160 mm. rotor
Pedals	Not included
Wheel size	29in
Tires	Schwalbe Rapid Rob K-Guard 29x2.10
Weight	15.5kg
Suitable for	MTB
{{($ctrl.showAllOption ? 'Search.Facets.ShowFewer' : 'Search.Facets.ShowAll') \| translate }}

Principia Evoke is an adrenaline-boosting and solid mountain bike. With Evoke, you don't compromise on quality, and the equipment, which is among the best components in its class, provides everything you need for all types of cycling, whether it's in the forest or the city.

Groupset

Shimano Deore

Shimano Deore is a powerful groupset, which is developed for steep uphill riding and swift downhill riding. Deore has quick shifting gears, allowing you to always sustain a fast tempo on the track and quickly adjust the gears, when the terrain changes.

Tires

Schwalbe Rapid Rob K-Guard

Schwalbe Rapid Rob are high quality tires with a strong grip and a well considered tire pattern. You don't ever have to worry about a puncture, as Rapid Rob is equipped with antipuncture inlays to ensure optimal protection on every terrain.

Accessories

Fitted with mounting points

The bike has mounting points for accessories to improve your riding experience and make everything easier and more accessible. The bike has fittings for a lock, fenders and a rear carrier.

Below you will find our sizing guide.

You just have to measure your inseam, to learn which size suits you.

Inseam in cm	Size in inches	Size in cm
62-69	13-15	33-38
70-77	15-17	38-43
78-85	17-19	43-48
86-93	19-21	48-53

Frame size	15"	17"	19"	21"
Reach (mm)	393	393	393	393
Stack (mm)	643	643	643	643
Trail (mm)	91	91	91	91
Standover height (mm)	752	782	812	843
BB height (mm)	304	304	304	304
Top tube length (mm)	583	583	583	583
Seat tube length (mm)	381	432	483	533
Chain stay length (mm)	475	475	475	475
Wheel base (mm)	1135	1135	1135	1135
BB drop (mm)	63	63	63	63
Head tube length (mm)	120	120	120	120
Seat tube angle	73	73	73	73
Head tube angle	69	69	69	69

Evoke A6.9 - blue
